If you're a Vancouver-area homeowner dealing with a wet basement, musty crawl space, or foundation cracks, there's a good chance your drain tiles are failing. But before you call a contractor, you probably want to know: how much will this actually cost?
Drain tile replacement is one of the most important — and most expensive — home maintenance projects you'll face as a property owner in the Lower Mainland. Vancouver's heavy rainfall (over 1,200mm annually downtown, and exceeding 2,000mm on the North Shore) puts enormous pressure on foundation drainage systems. When those systems fail, the consequences range from cosmetic water stains to catastrophic structural damage.
In this comprehensive guide, we'll break down exactly what drain tile replacement costs in Vancouver in 2026, what factors drive prices up or down, and how you can make the smartest investment to protect your home.
What Is Drain Tile Replacement?
A drain tile system (also called a perimeter drain or weeping tile) consists of perforated pipes installed around your foundation at the footing level. These pipes collect groundwater and redirect it away from your foundation — typically to a storm sewer, sump pit, or daylight drainage point.
Over time, drain tiles clog with sediment, get crushed by soil movement, or deteriorate from age. Clay tiles used in homes built before the 1970s are especially prone to failure. When your drain tiles stop working, water pressure builds against your foundation walls, forcing moisture through cracks and creating the damp, musty conditions that damage both your home's structure and your family's health.

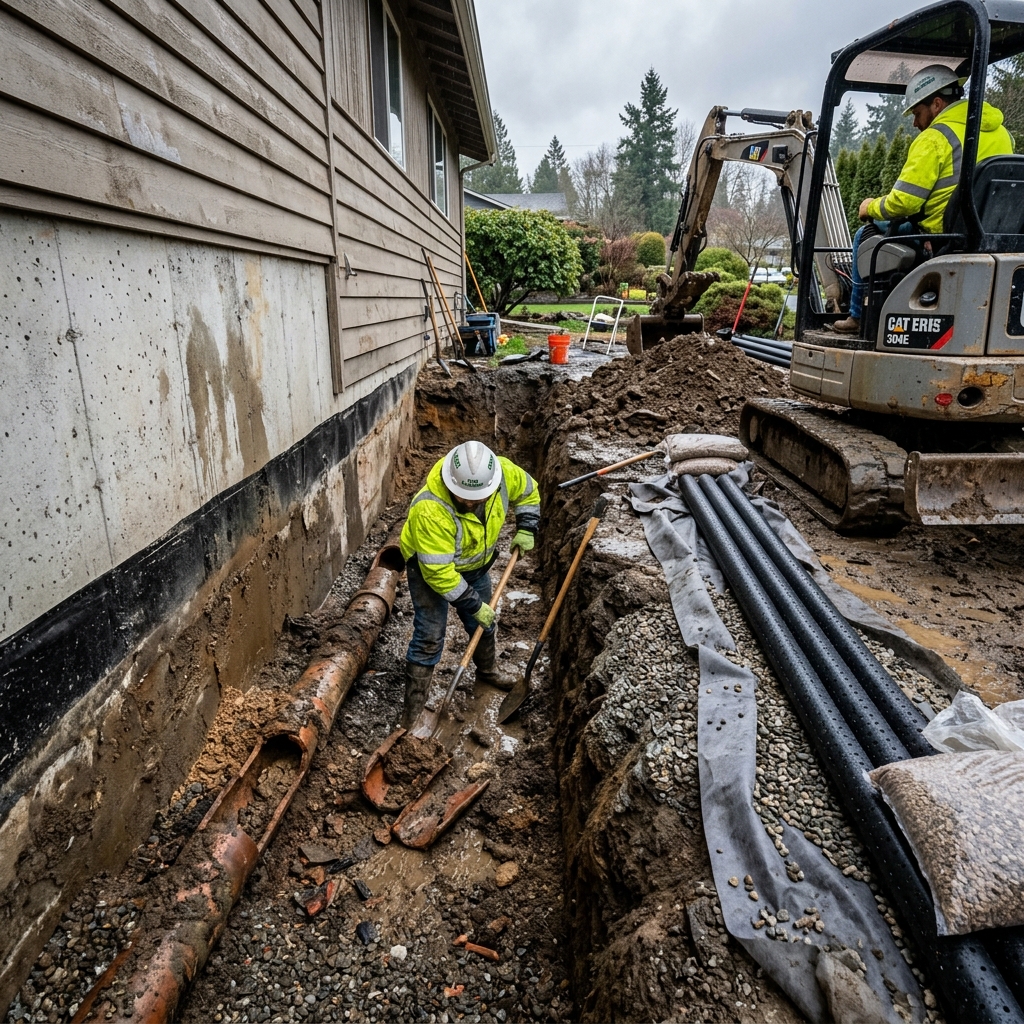

Replacement involves excavating around (or inside) your foundation, removing the old pipes, installing new PVC perforated pipe in a gravel bed, applying waterproofing membranes, and restoring your landscaping. It's major work — but it's the single most effective way to protect a Vancouver home from water damage.
Average Cost Breakdown for Vancouver (2026)
Here's what Vancouver homeowners should expect to pay for drain tile replacement in 2026:
Typical Price Ranges
- Partial replacement (one or two sides) $3,000 – $8,000
- Full exterior replacement (standard home) $8,000 – $18,000
- Full exterior replacement (large home) $15,000 – $25,000+
- Interior French drain (sump pump system) $5,000 – $12,000
- Combined interior + exterior $12,000 – $30,000+
These ranges reflect real pricing from projects across North Vancouver, West Vancouver, and the broader Lower Mainland. The wide range reflects significant differences in project scope, accessibility, and site conditions.
For most standard single-family homes on the North Shore, a complete exterior drain tile replacement runs between $12,000 and $18,000. This includes excavation, new pipe and gravel, waterproofing membrane, backfill, and basic landscape restoration.
Factors That Affect Your Price
1. Home Size and Foundation Length
The most direct cost driver is how much pipe needs to be installed. A small rancher with 100 linear feet of foundation perimeter will cost significantly less than a large two-storey home with 200+ linear feet. Most contractors quote based on linear footage, with rates typically ranging from $60 to $120 per linear foot for the complete system.
2. Depth of Excavation
Homes with deeper foundations (walkout basements, for example) require deeper excavation, which means more labour, more material, and more safety considerations. A crawl space footing at 3 feet deep is far easier to access than a full basement footing at 8 feet deep. Deeper excavations may also require temporary shoring to protect adjacent structures.
3. Soil Conditions
The North Shore is notorious for challenging soil. Clay-heavy soil (common in North Vancouver), rocky terrain (prevalent in the Upper Lonsdale and Lynn Valley areas), and high water tables all increase excavation time and difficulty. If your site has bedrock close to the surface, expect a premium of 20–40% over standard soil conditions.
4. Accessibility
Can heavy equipment reach your foundation? Homes with narrow side yards, elevated lots, or extensive landscaping (mature trees, retaining walls, patios) that must be navigated around or temporarily removed will cost more. If all excavation must be done by hand, expect labour costs to nearly double compared to machine-accessible sites.
5. Waterproofing Requirements
A proper drain tile replacement should include foundation waterproofing — not just new pipe. Applying a waterproofing membrane (such as Blueskin or Delta MS dimple board) adds $2,000 to $5,000 to the project, but it's money well spent. A new drain tile without waterproofing is like installing a new gutter without sealing your roof.
6. Sump Pit and Pump Installation
If your home doesn't have a gravity connection to the storm sewer, you'll need a sump pit and pump. This typically adds $1,500 to $3,500. Homes in areas with high water tables (like parts of Lynn Creek or Capilano) often benefit from battery-backup sump pumps, which add another $500 to $1,000.
Interior vs. Exterior Drain Tile Cost
When comparing interior and exterior drain tile systems, cost is just one factor. Here's how they compare:
Exterior drain tiles are the gold standard. They intercept water before it ever reaches your foundation wall, and combined with waterproofing, they provide the most complete protection. However, they require extensive excavation around the outside of your home, which means higher labour costs and landscape disruption.
Interior drain tiles (French drains) are installed inside the basement, just beneath the floor slab. They're less expensive because excavation is limited, but they only manage water after it's already inside your foundation. They're an excellent choice when exterior access is limited — for townhouses, row homes, or homes with expensive landscaping that can't be disturbed.
In many Vancouver homes, especially older properties with chronic water issues, we recommend a combined approach: exterior drain tiles with waterproofing on the most critical sides, and interior drains to manage any residual water migration. This is particularly effective for homes on sloped lots, which are common throughout North Vancouver.
Additional Costs to Consider
Beyond the core drain tile work, several related costs often come up during projects:
- Permits: Most municipalities in Metro Vancouver require a plumbing permit for drain tile work. Expect $200–$500 in permit fees.
- Foundation crack repair: If cracks are found during excavation (very common), epoxy injection or polyurethane repair adds $300–$800 per crack.
- Landscape restoration: Basic grading and seeding is usually included. Replacing concrete walkways, patios, or retaining walls costs extra — typically $2,000–$8,000.
- Downspout connection: Connecting roof downspouts directly to the storm sewer (rather than the drain tiles) is code-best-practice and adds $500–$1,500.
- Camera inspection: A pre-project camera inspection ($250–$450) can identify specific failure points, potentially reducing the scope of work.
How to Save Money on Drain Tile Replacement
Drain tile replacement is a significant investment, but there are legitimate ways to reduce costs:
Get Multiple Quotes
Always get at least three quotes from licensed, insured contractors. Be wary of quotes that are dramatically lower than others — they may exclude essential components like waterproofing or proper gravel bedding. At Lord Mechanical, we provide detailed, itemized estimates so you can compare apples to apples.
Schedule in the Dry Season
Summer and early fall (June through September) are the best times for drain tile work in Vancouver. The ground is drier, excavation is easier, and many contractors offer better pricing during their less-busy period. Trying to get emergency drain tile work done during a November rainstorm will cost you a premium.
Consider Partial Replacement
If your drain tiles are only failing on one or two sides of the house, replacing just those sections can cut costs by 50–70%. A camera inspection can identify exactly where the failures are, allowing you to target your investment where it matters most.
Combine with Other Projects
If you're already planning a bathroom renovation or other work that requires digging near your foundation, combining drain tile replacement with that project can reduce overall excavation costs. Similarly, if a neighbour needs the same work done, some contractors offer discounts for adjacent projects.
Don't Skip the Waterproofing
This might sound like the opposite of saving money, but investing in proper waterproofing during your drain tile replacement saves you from needing to excavate again in the future. Doing the job right once is always cheaper than doing it twice.
When to Replace vs. Repair Your Drain Tiles
Not every drainage issue requires a full replacement. Here's how to decide:
Repair or flush when:
- Your drain tiles are less than 20 years old and made of PVC
- A camera inspection shows localized blockage (roots, sediment) rather than structural failure
- Water issues are limited to one area of the foundation
- The system is generally intact but needs cleaning
Replace when:
- Your drain tiles are original clay or concrete (pre-1980s homes)
- Camera inspection shows crushed, collapsed, or separated pipes in multiple areas
- You're experiencing water infiltration on multiple sides of your foundation
- Previous repairs have failed to solve the problem
- You're planning a major renovation that includes foundation work
If you're not sure which category your situation falls into, a professional drainage inspection is the best first step. The $250–$450 investment in a camera inspection can save you thousands by confirming whether you truly need a full replacement.
